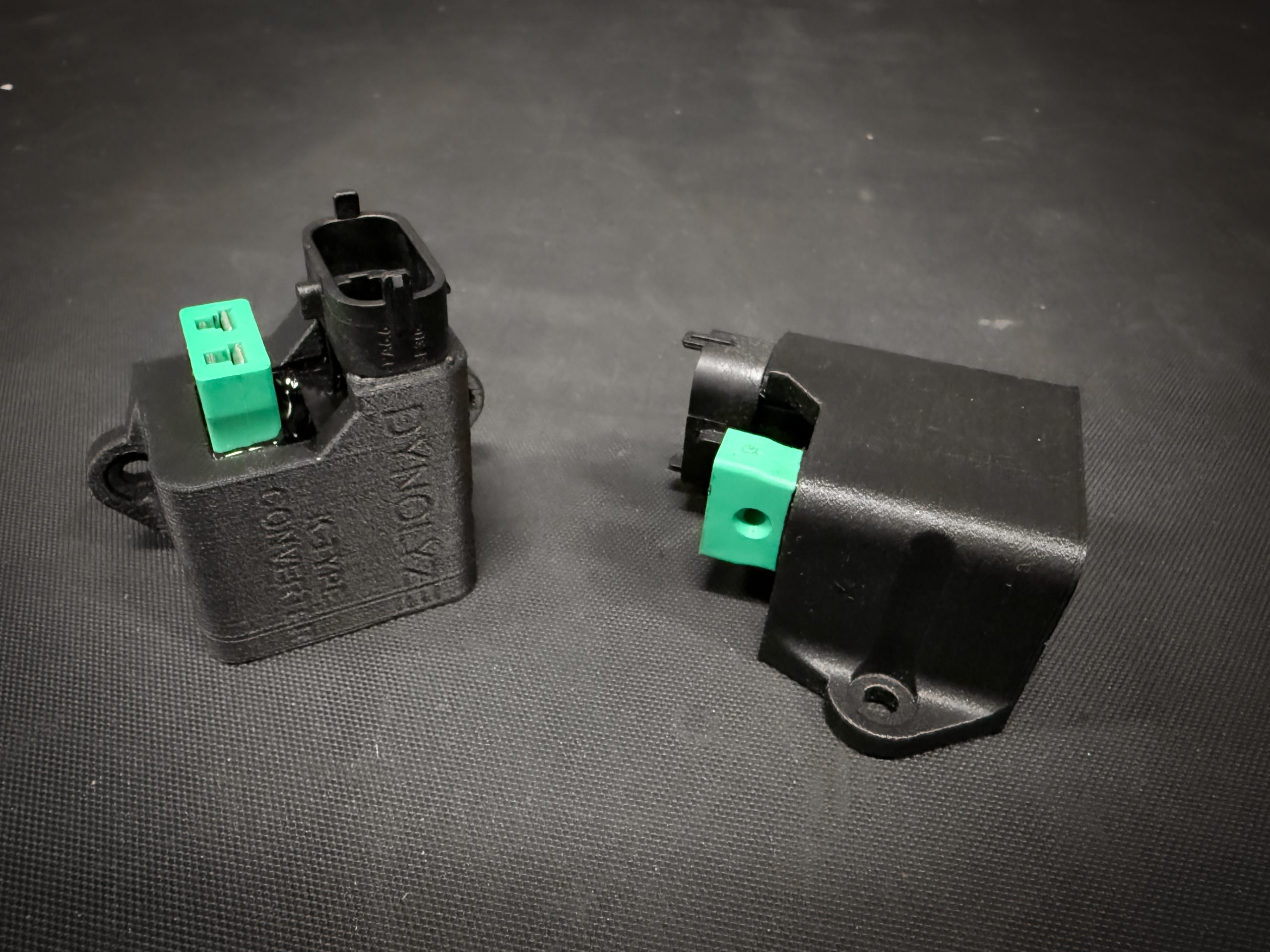

• Thermocouple amplifier – converts the thermocouple signal to analog 0-5V
• Measurement range 0 °C to +1000 °C
• 1 channel, k-type miniature sensor input
• Cold junction compensation
• Supply voltage 5V
• Mating connector Bosch 3 pin compact connector

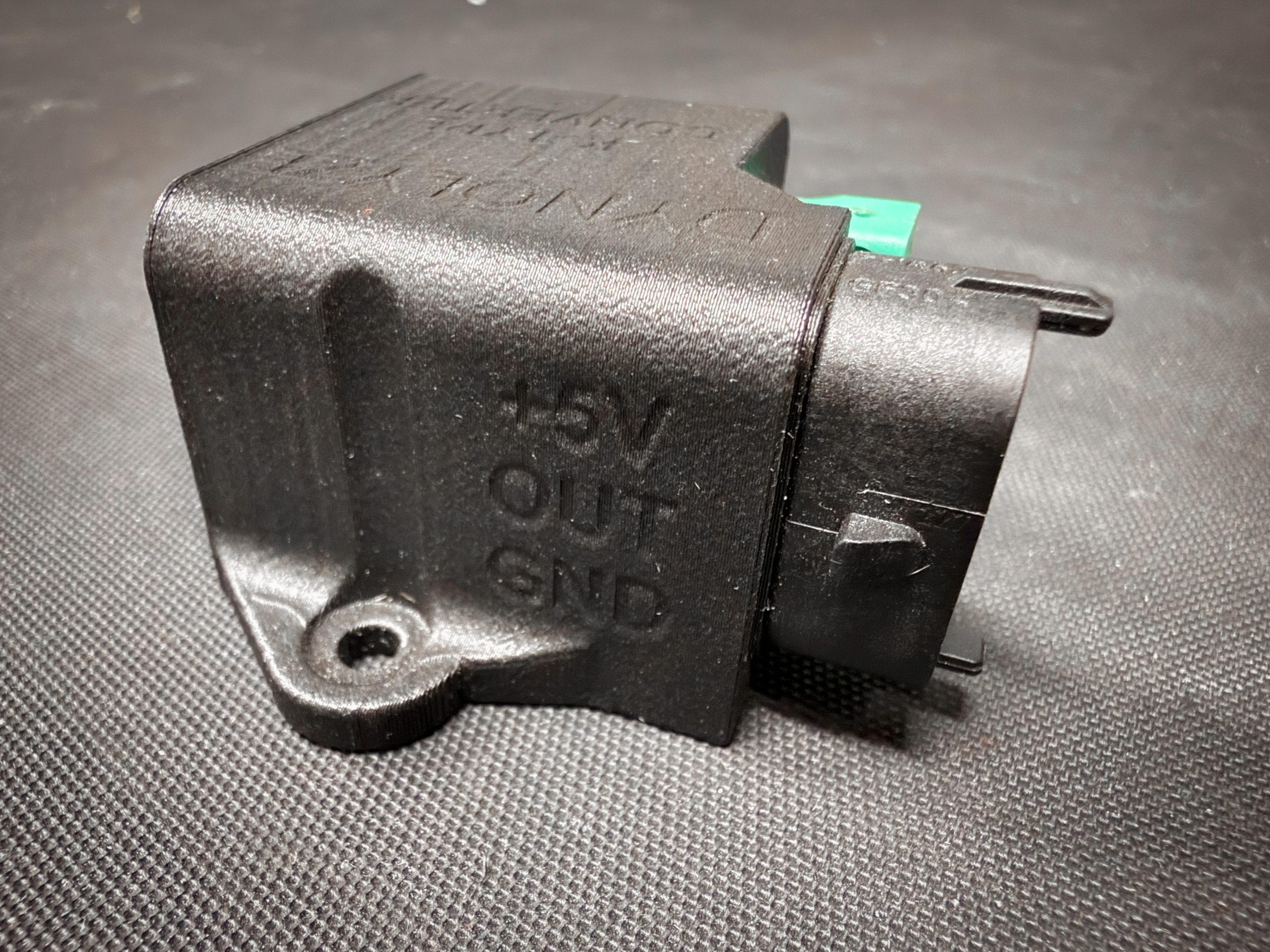

• 3 pin: +5V, signal, ground
• Compatible with Dynolyze hub dynos
• Compatible with common applications & stand-alone ECUs  through analog input

0V = 0° C

5V = 1000° C
