HUB DYNAMOMETERS

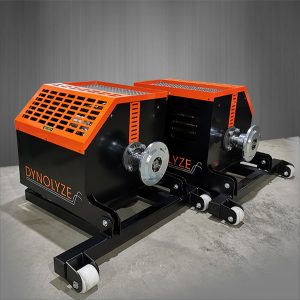

SMALL
- Most compact and lightweight
- Ideal for workshops with limited space
- For street cars, n/a and small turbo cars, junior single-seaters (F3, F4, Formula regional), rally cars...

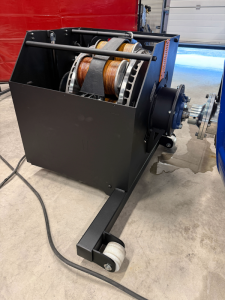

*new* SMALL PLUS
- Compact desing with increased capacity
- For high-performance street cars, turbocharged cars, track and street drag cars, drift cars, cars with wide bodykits, electric cars...
MEDIUM
- Maximum braking capacity
- Maximum reach with extra long hub extension
- High-power race cars, drag cars, hillclimb cars, other demanding high-torque applications, electric cars...
- All models: wide range toe-in/out and camber angles, standing on wheels for easy moving
- The package includes: brake hubs, brake control electronics, standard software, remote controller, electrics, computer, computer booth, screen, key board, weather station, sensor boom and 5 bolt adapters.
DYNO MODEL COMPARISON CHART
SMALL
SMALL PLUS
MEDIUM
Brake size per hub
1 750 Nm
3 300 Nm
4 600 Nm
Braking capacity per axle in 2WD
3 500 Nm
6 600 Nm
9 200 Nm
Max calculated braking power at 2000 hub RPM in 2WD (hub horsepower)*
840 hp
1 600 hp
2 500 hp
Recommended for cars max hp**
500-600 hp
1 000 – 1 200 hp
up to 2 000 hp
Max current per brake
16 A
25 A (can be run with 16 A but braking capacity is then lower)
25 A
Power supply for 2WD
3x32A 230/400V AC 50 Hz
3x32A 230/400V AC 50 Hz
3x32A 230/400V AC 50 Hz
Max hub RPM
3000 (=with 225/55 R16 tyres max speed equivalent to 358 km/h)
3000 (=with 225/55 R16 tyres max speed equivalent to 358 km/h)
3000 (=with 225/55 R16 tyres max speed equivalent to 358 km/h)
Hub reach
Standard
Long
Extra Long
Weight per hub
330 kg
X
675 kg
DYNO MODEL COMPARISON CHART
Swipe to compare >>
* calculated max braking power. Braking power depends on speed and brake temperature and it may vary depending on the real-life conditions.
** recommended through real-life experience taking into account generally used diff ratios etc.

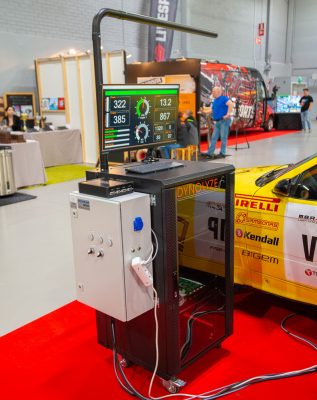

Computer booth
- Movable computer cabinet, with lockable wheels
- Movable multi-angle screen holder to adjust the screen just where you want it
- Dyno computer inside the booth
- Inside the booth there is space for printer or tuning tools
- A bar to hold and keep additional sensor wires organised
- Weather station, remote controller, screen, keyboard and analog wires included
- Software installed, ready to use
- Included in package delivery
Main electric box
- Main power feed plug-and-play type for European 230/400V AC 50 Hz 3x32A CEE (self-installation possible with normal 3-phase 5-wire socket)
- System needs a 3x32A supply
- Norwegian spec on request, ask for more info
- 2x on/off switchs and indication lights for 12V auxiliary outputs, like wideband lambda controllers
- All outputs are protected by automatic fuses
- Fast brake power supply with modern IGBT technology. Read more under "Dyno software"
- Included in package delivery
- The package includes: brake hubs, brake control electronics, standard software, remote controller, electrics, computer, computer booth, screen, key board, weather station, sensor boom and 5 bolt adapters.
4WD combination options

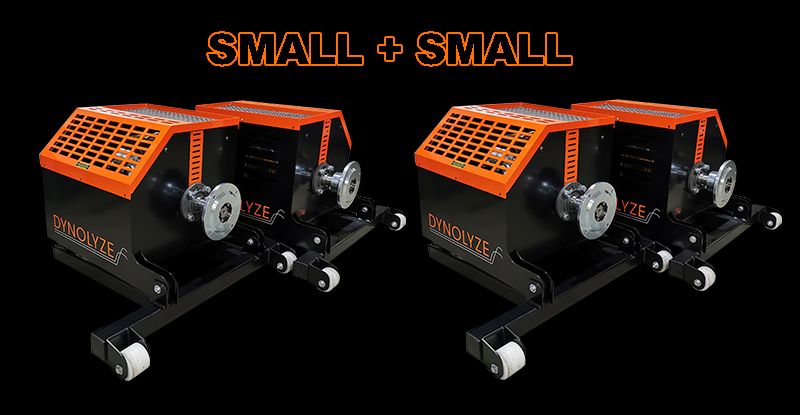

- 4WD hub dyno SMALL & SMALL
- 4WD hub dyno SMALL & SMALL PLUS
- 4WD hub dyno SMALL PLUS & SMALL PLUS

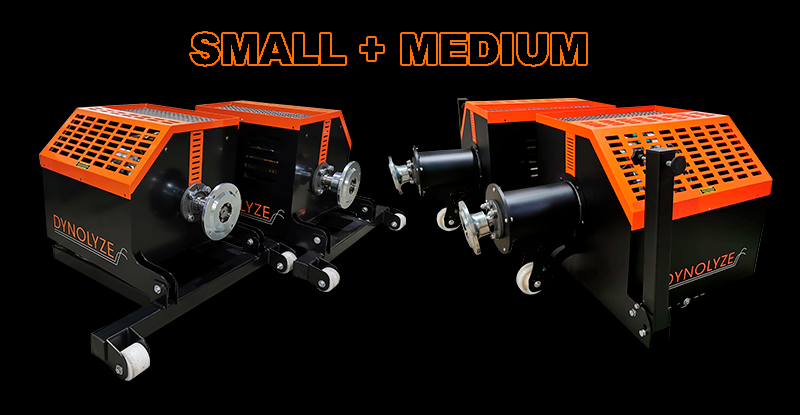

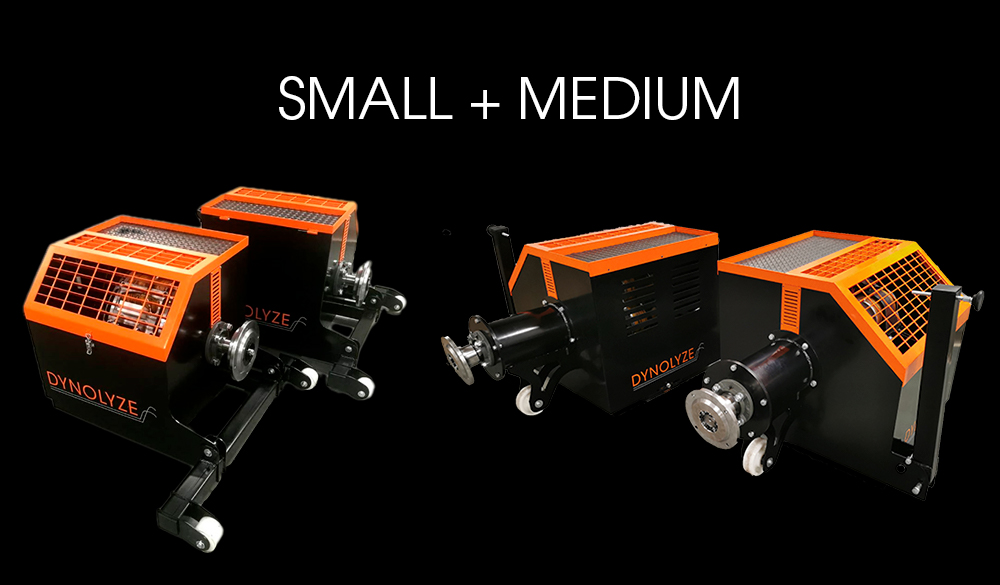

- 4WD hub dyno SMALL PLUS & MEDIUM
Want to get a full price list and brochures?
